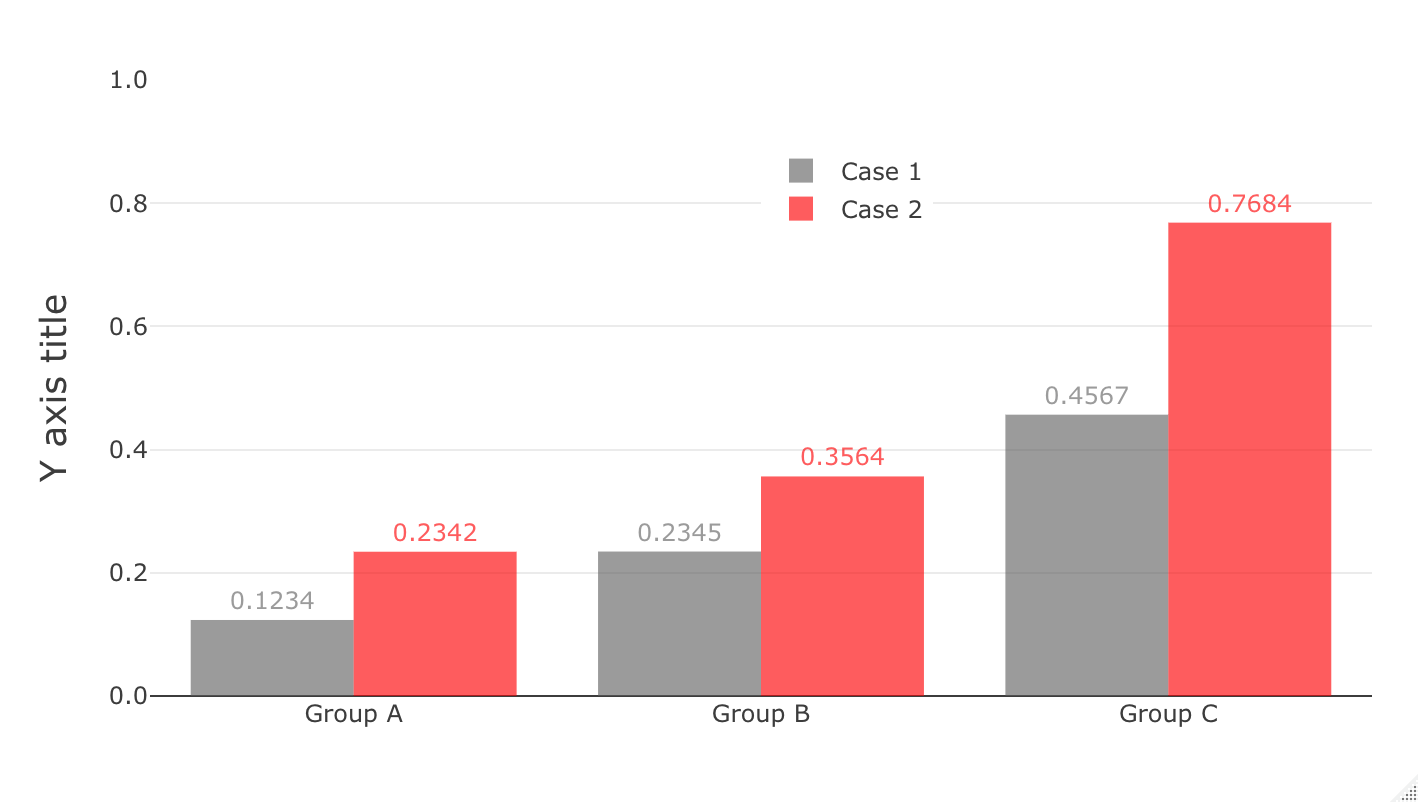

[R] Grouped Bar Chart by plotly

이번에는 Plotly 를 이용해 그룹 바 그래프를 그리는 코드입니다.

library(plotly)

groups <- c("Group A", "Group B", "Group C")
group_value1 <- c(0.1234, 0.2345, 0.4567)
group_value2 <- c(0.2342, 0.3564, 0.7684)
data <- data.frame(groups, group_value1, group_value2)

# rgba: red, green, blue and alpha
color1 <- "rgba(105, 105, 105, 0.6)"
color2 <- "rgba(255, 0, 0, 0.6)"

# texttemplate: to define the format of annotated text
fig <- plot_ly(data, x = ~groups, y = ~group_value1, text = ~group_value1, texttemplate="%{y:.4f}", textposition = 'outside', textfont = list(color=color1), type = 'bar', marker=list(color = color1), name = 'Case 1')
fig <- fig %>% add_trace(y = ~group_value2, text = ~group_value2, textfont=list(color=color2), marker=list(color = color2), name = 'Case 2')
# title="" : to remove title of xaxis, tickformat: to set the format of ticks in axis
fig <- fig %>% layout(legend=list(x = 0.5, y= 0.9), yaxis = list(tickformat=".1f", title = 'Y axis title', titlefont=list(size=18), range = c(0, 1.0)), barmode = 'group',
                      xaxis = list(categoryorder = "array",
                                   categoryarray = ~groups, title="", titlefont=list(size=10)))

fig
